xProduct specification
TV COMPATIBILITY
CANVAS SOLO is suitable for all TV sizes and can hang independently under the TV.
STAND / WALL MOUNT
Hybrid, works on both floor and wall

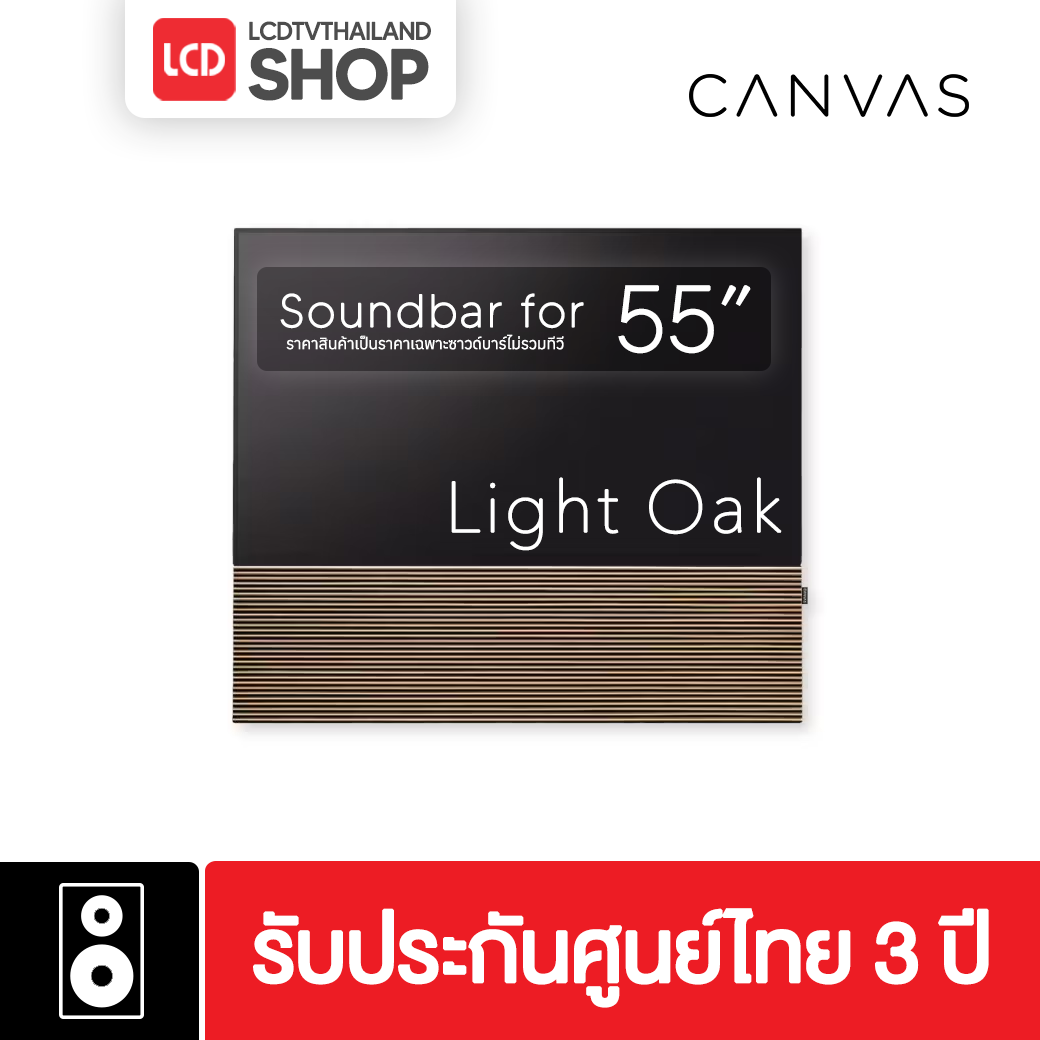

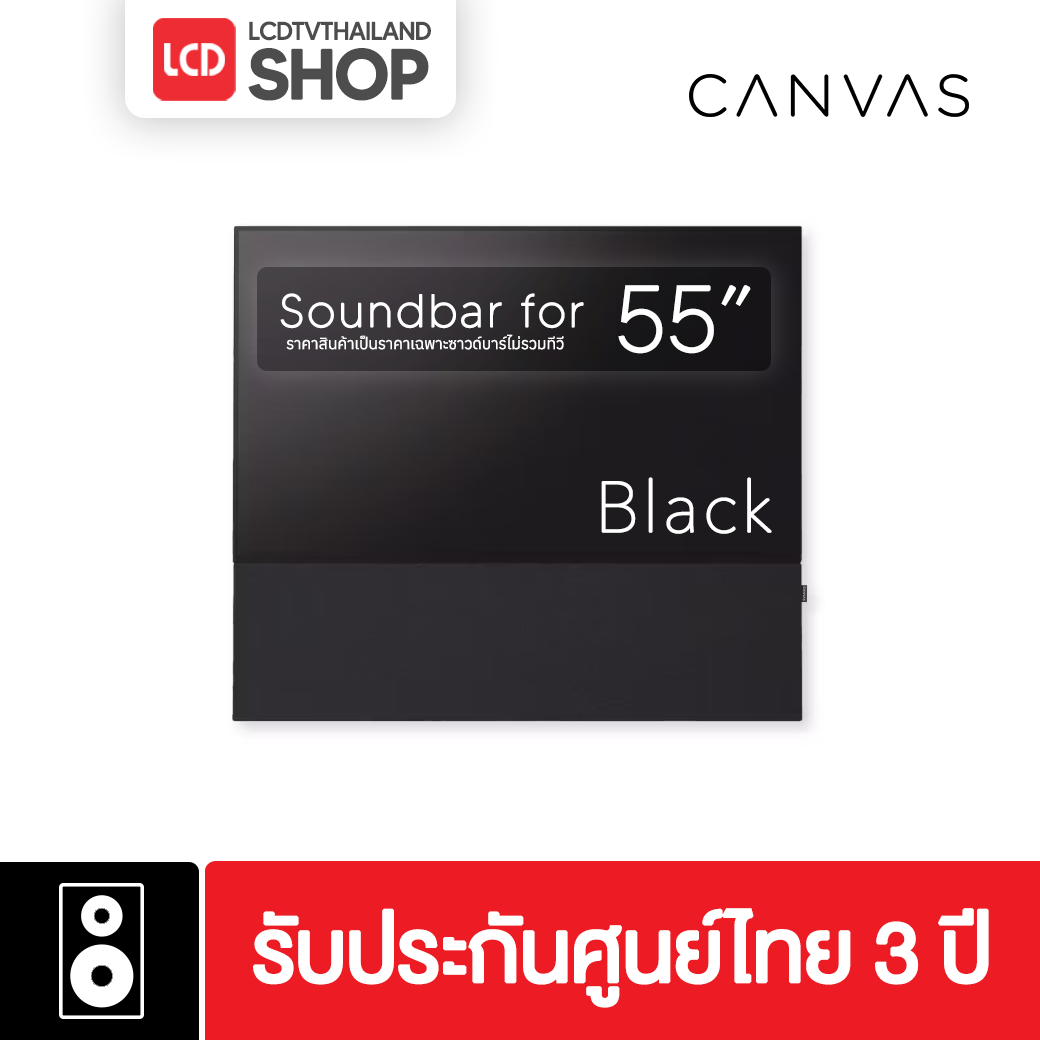

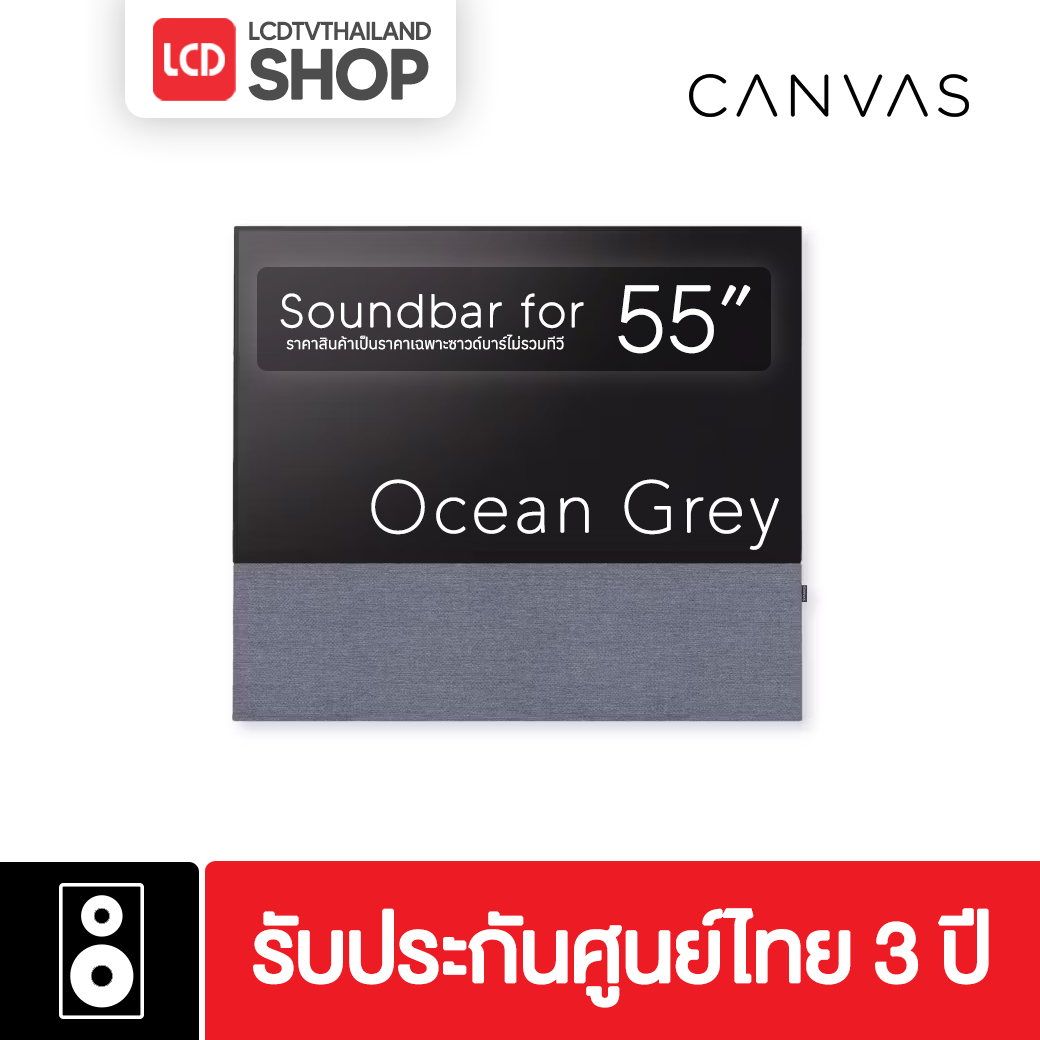

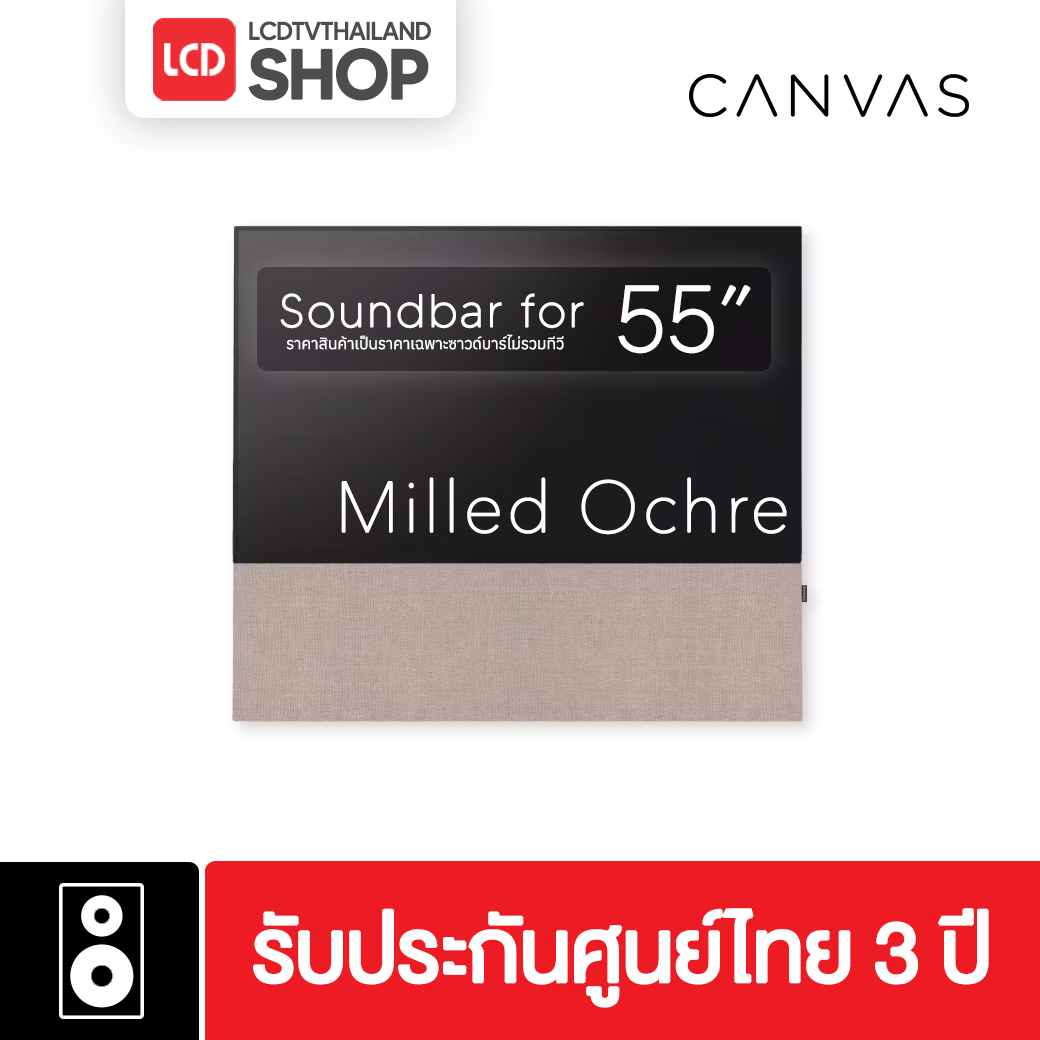

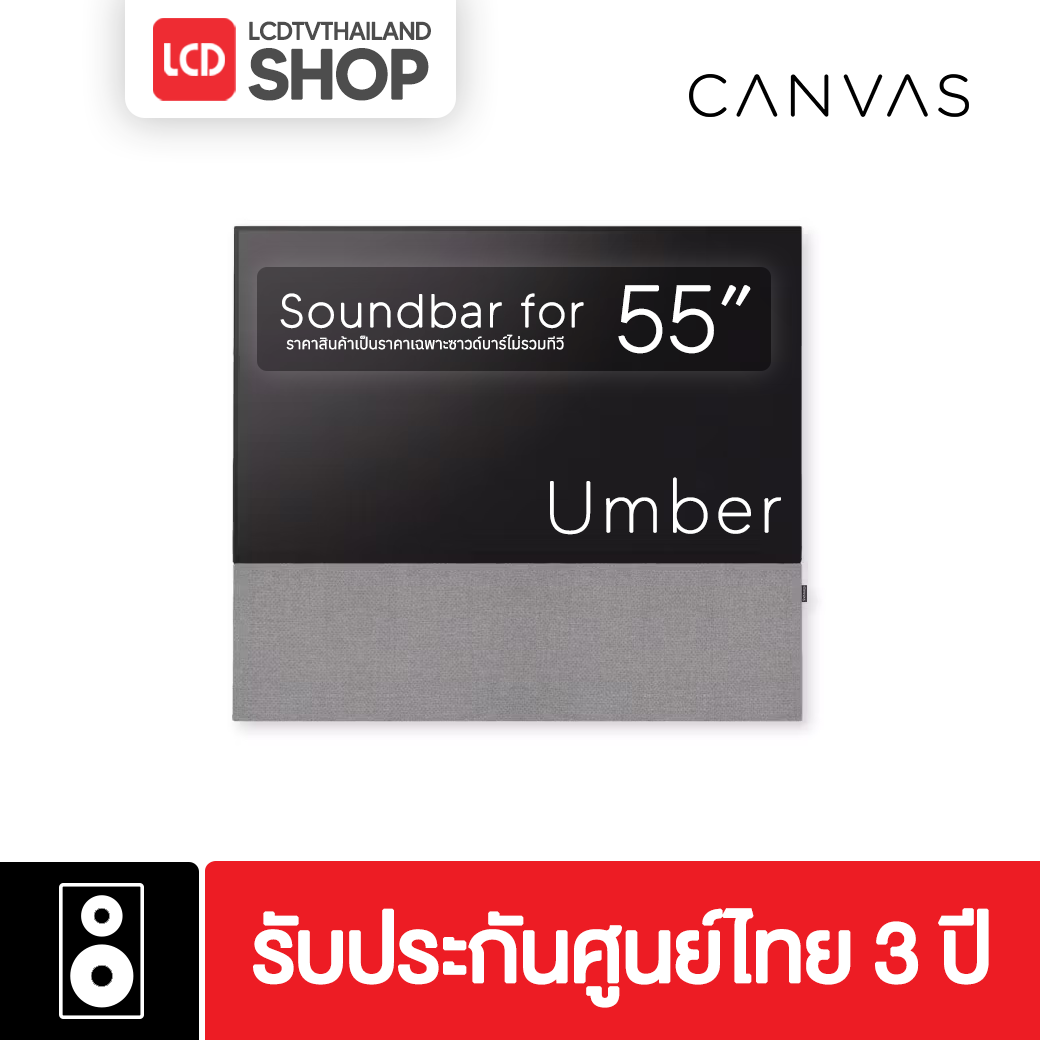

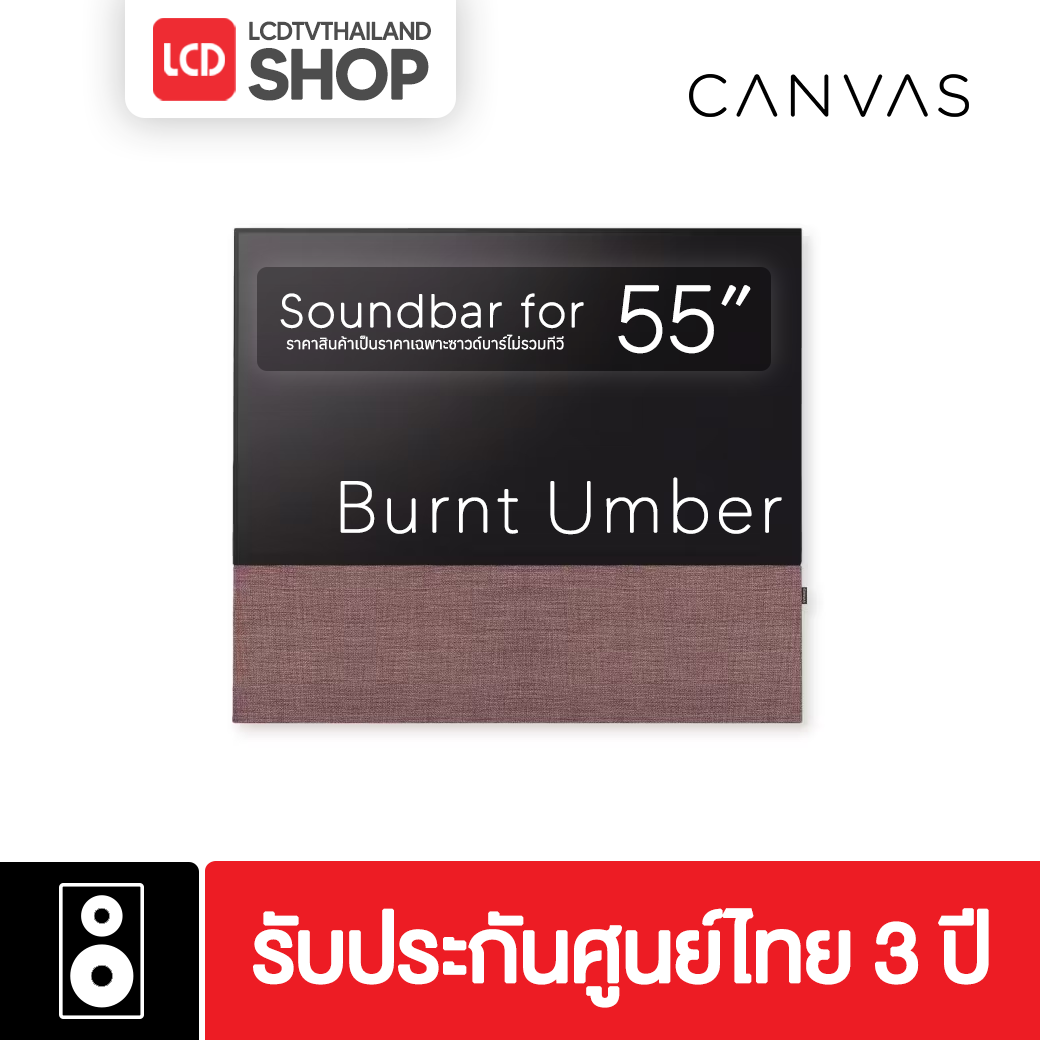

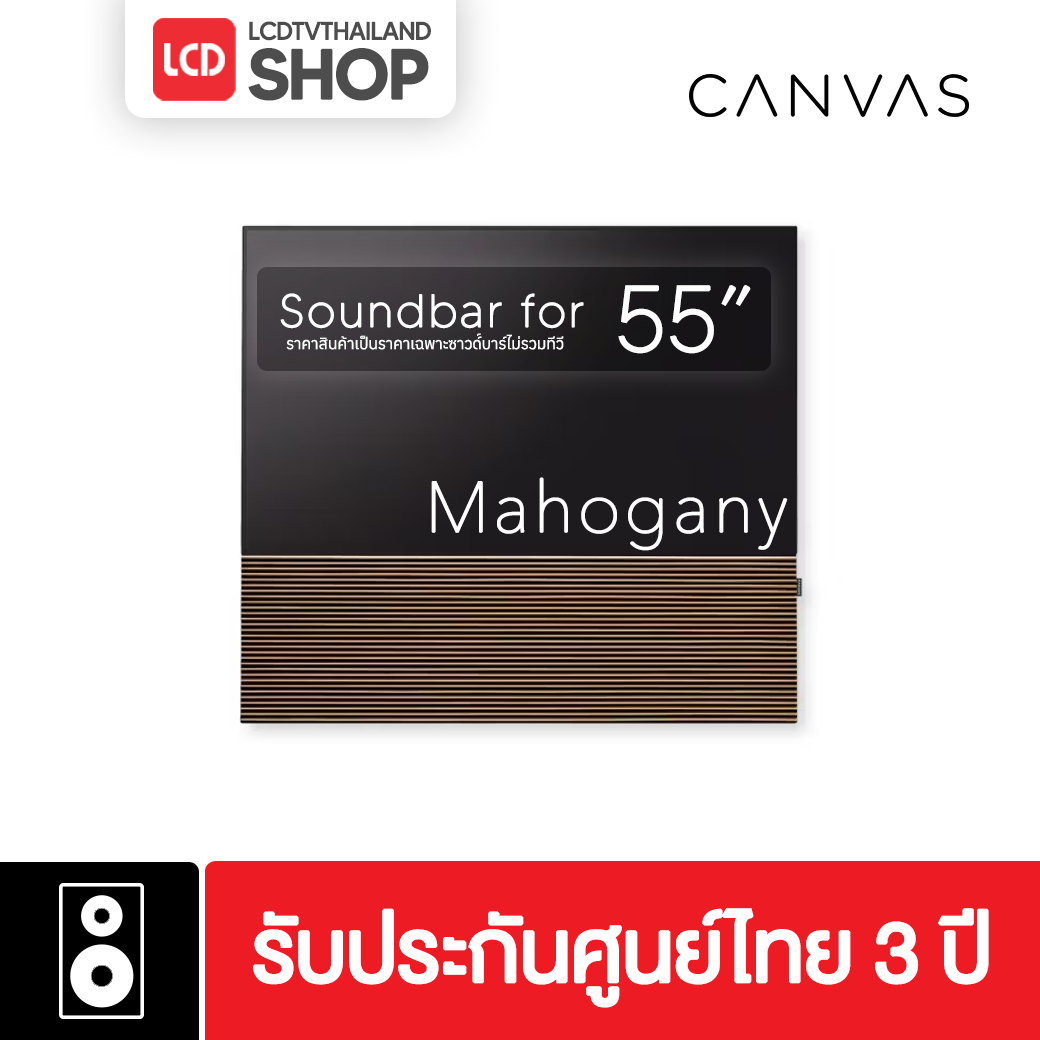

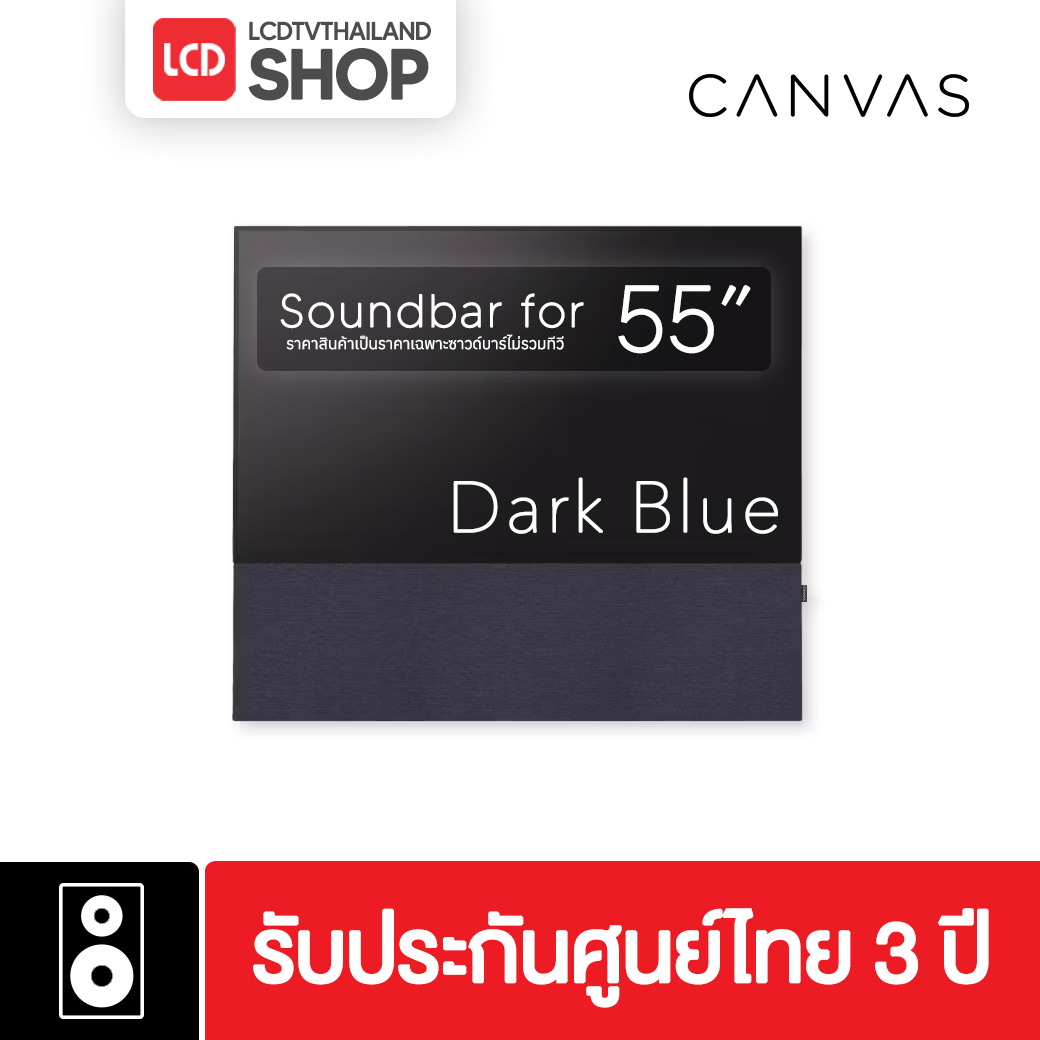

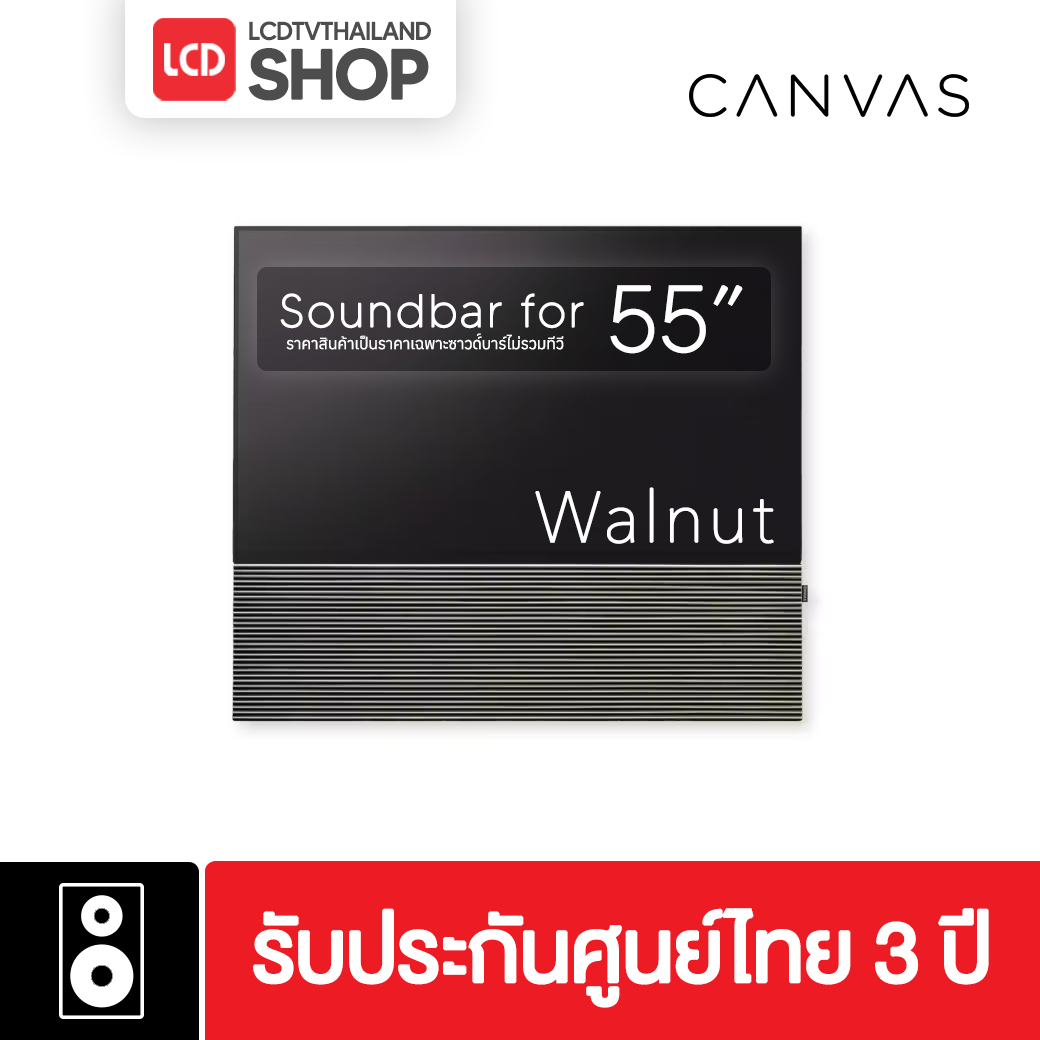

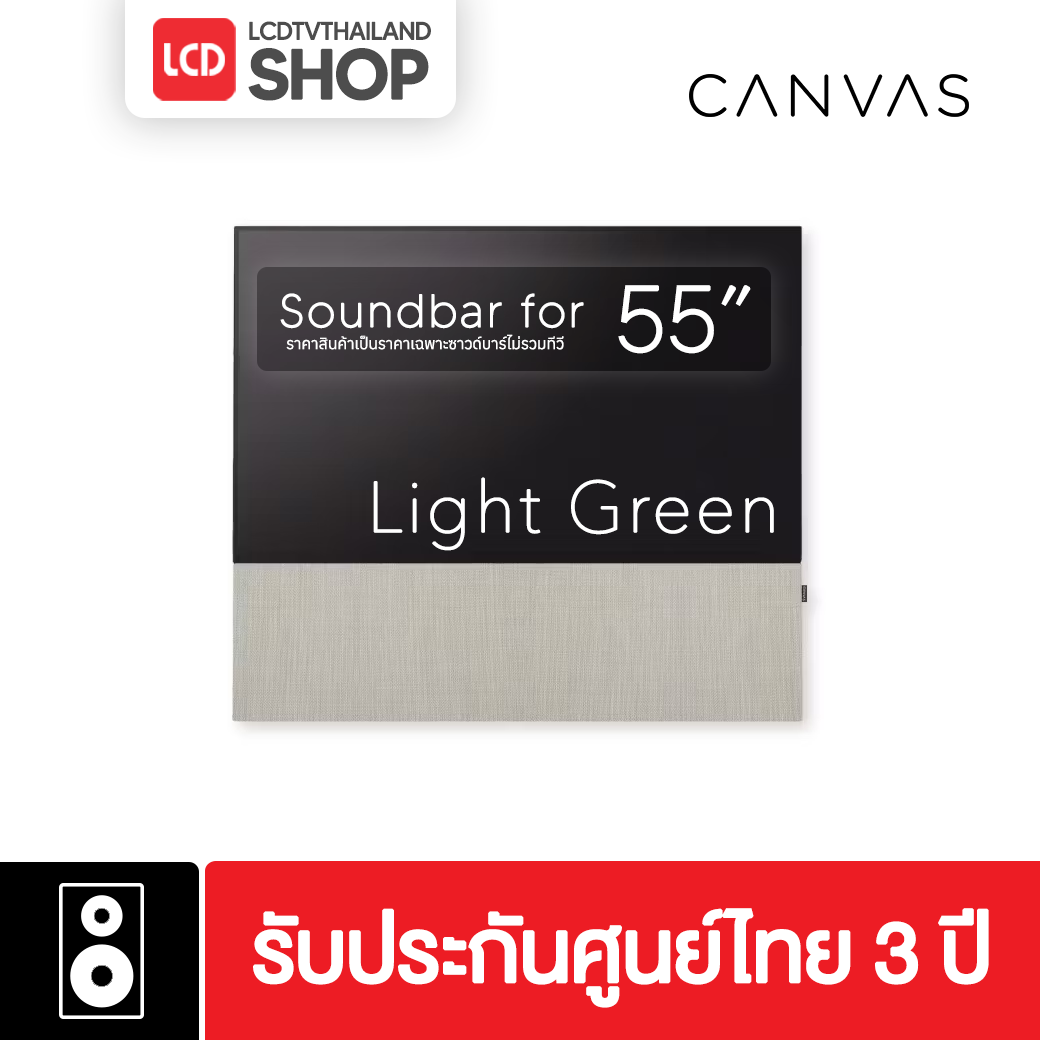

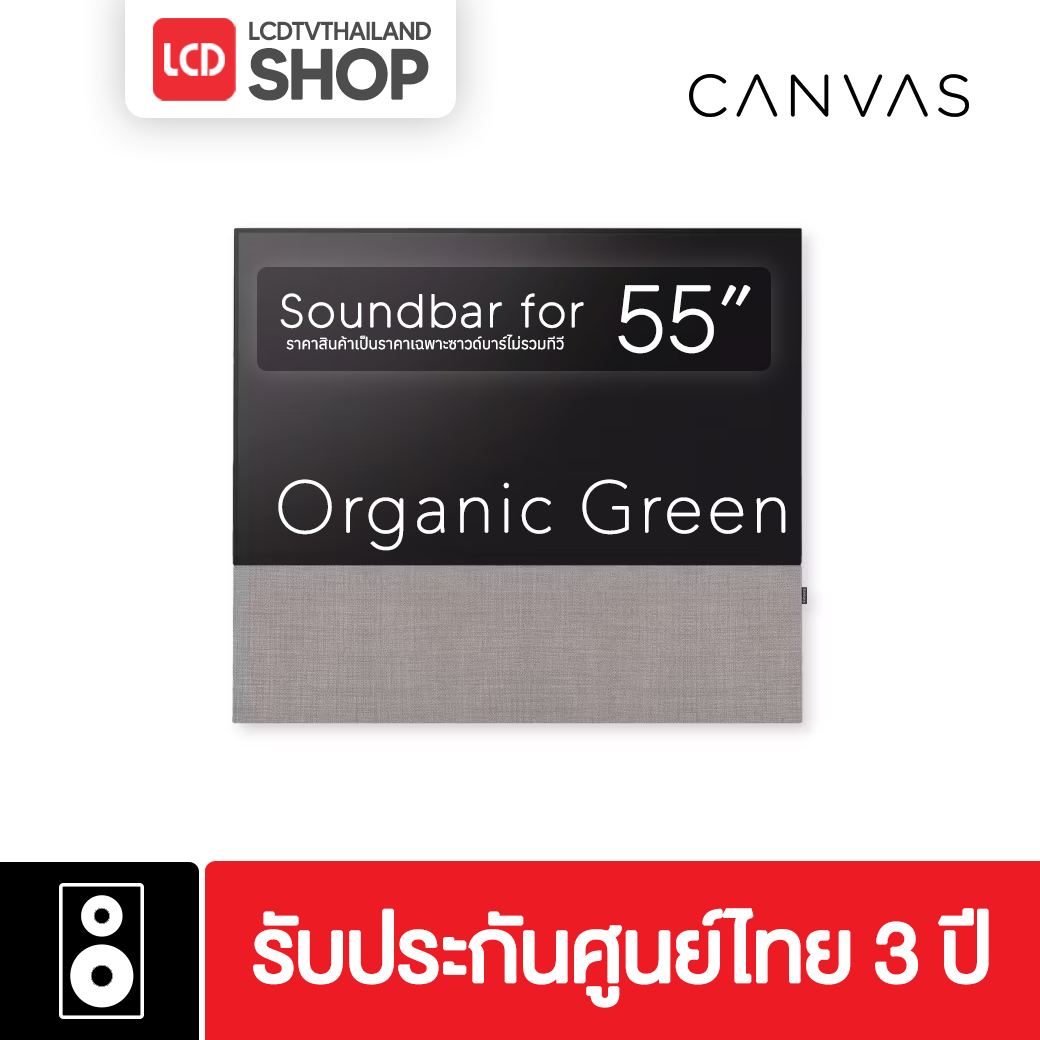

FRONT GRILLES
Interchangeable magnetically attached in 12 finish options, including Kvadrat fabrics and real wood, in 55” sizes

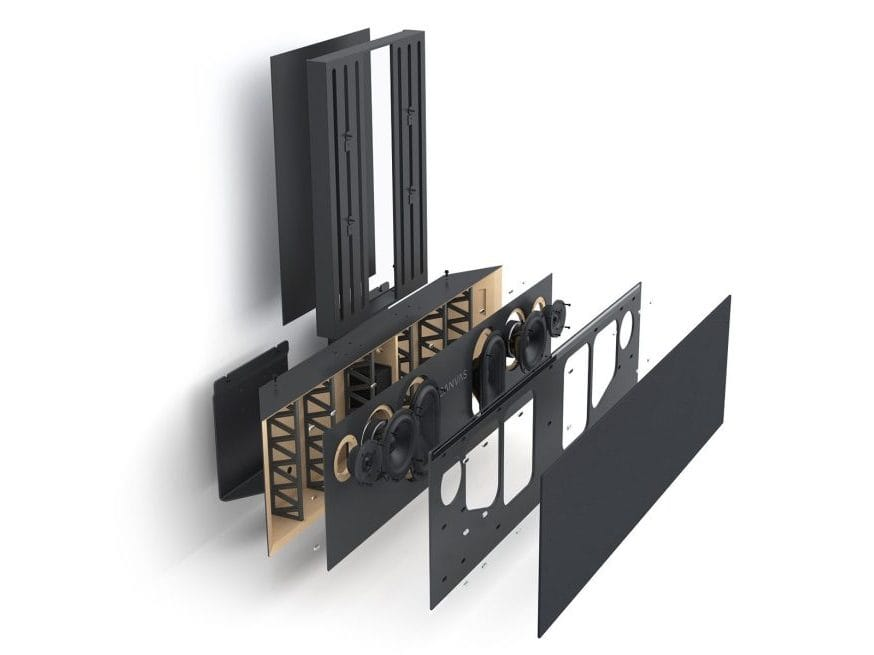

CABINET
Rock solid 24 liters, MDF with CANVAS BridgeBrace™ technology

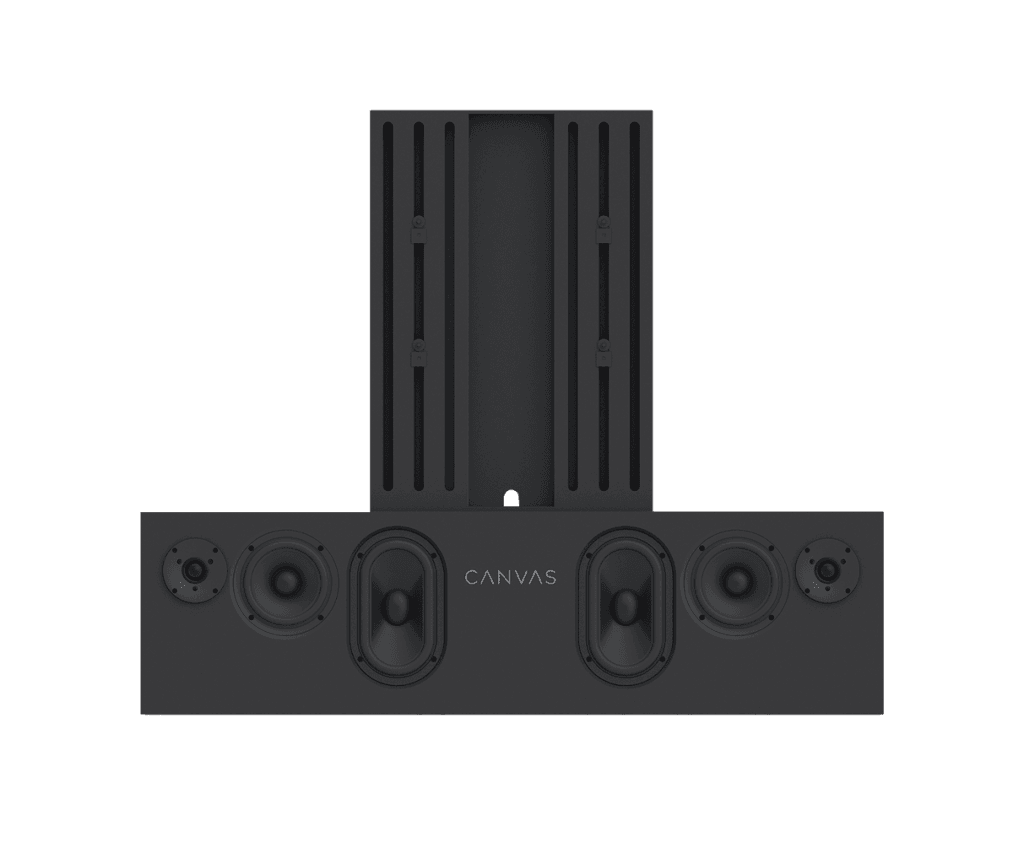

BASS / MIDRANGES
2 x High End SB Acoustics paper cone, long excursion 6,5” die-cast aluminium chassis
TWEETERS
2 x High End SB Acoustics 29mm silk dome with CANVAS designed waveguide die-cast aluminium frontplate
PASSIVE RADIATORS
2 x High End SB Acoustics low-loss high precision, long excursion
CROSSOVERS
DSP tuned in a Klippel system for linear frequency response and perfect phase responce, custom high order
AMPLIFIERS
4 channel Class D HiFi amps with a total of 250 watts, but with greater sound pressure than traditional soundbars with 1000 watts.
Many customers have wondered why CANVAS HiFi plays deeper and more powerfully than traditional soundbars, which indicate they have a much higher power output amplifier.
A large number of factors comes into play here, but an essential factor is that CANVAS has a whopping 24 liters of effective acoustic volume, in combination with 2 x 6.5" bass/midrange drivers and 2 x 5x8" slave bass drivers, which gives 592 cm2 radiating surface area, which corresponds to a 12" bass driver. CANVAS HiFi is therefore highly efficient, and plays louder and with more bass than traditional soundbars
DAC’s
Burr-Brown 24 Bit / 192 kHz
FREQENCY RESPONSE
30 Hz - 20.000 Hz
SIGNAL TO NOISE RATIO
(Rated power output)
100 Hz >104 dB
1 KHz >103 dB
10 KHz >105 dB
THD+N
(1/8 Rated power output)
100 Hz <0.04 %
1 KHz <0.04 %
10 KHz <0.05 %
DSP
Powerful Analog Devices 300 MIPS quad-core with BACCH 3D filter
ROOM CORRECTION
Through iOS app, uses iPhones built in microphone or optional Zen Mic
CONNECTIVITY
HDMI eARC, Toslink, Analog, Apple AirPlay 2 (multi-room), Google Cast (multi-room), Roon, Tidal, Spotify Connect, DLNA.
In addition, automatically activated input via control unit that can be hidden in CANVAS for connection with existing control systems such as Sonos app, Bluetooth, B&O App, Bluesound, HEOS, Samsung App or other control units. Contact our support for help with configuration if you have special wishes.
UPDATES
Software automatic OTA. Hardware electronics upgradable
